Understanding how a string pinsetter actually works makes it much easier to evaluate whether the technology fits a specific venue, and to ask informed questions when comparing suppliers. This guide breaks down the core mechanism step by step, the components involved, and how the system differs from the free-fall pinsetters that dominated bowling for most of the twentieth century.
The Core Mechanism Behind a String Pinsetter
At its simplest, this system keeps every pin tethered to an overhead mechanism via an individual cable running through the top of the pin. That single design choice is what defines the entire technology and separates it from traditional pinsetting systems.
Why Tethering Changes Everything
Because each pin stays connected to the mechanism above the lane at all times, the system never needs to catch, sort, or reorient loose pins the way a free-fall pinsetter does. Instead of a complex below-lane pit with sweep bars and distributor wheels, the entire reset process happens from above, using far fewer moving parts to accomplish the same result.
Step by Step: What Happens During a Frame
Understanding this cycle makes the whole system much less of a black box.
A ball is delivered down the lane exactly as it would be with any pinsetting technology. When the ball strikes the pins, those that are hit hard enough fall, but because they remain tethered by cable, they don't scatter freely across the pit the way an untethered pin would.
After the delivery, the overhead mechanism lifts all ten pins simultaneously by their cables. Sensors or mechanical indicators determine which pins are still standing and which fell, allowing the system to identify exactly which pins need to be reset for the next delivery — spare shots included.
Fallen pins are lifted clear of the deck while standing pins are held steady. The mechanism then lowers only the pins needed back into position, whether that's a fresh rack of ten for a new frame or a partial setup for a spare attempt. This entire sequence typically completes in three to eight seconds depending on the specific system.
Once pins are correctly positioned, the mechanism resets to a ready state, and the lane is clear for the next delivery. The relative simplicity of this cycle — compared to the multi-stage sweep, pickup, and respot sequence of a free-fall system — is the main reason these systems have fewer components that can fail.
Key Components That Make a String Pinsetter Work
A handful of core parts appear across virtually every design of this kind, regardless of manufacturer.
The Overhead Cable Mechanism
This is the central unit housing the motors and cable spools that lift, sort, and reposition all ten pins. Its mechanical simplicity relative to a below-lane pit system is the primary reason these systems generally require less specialized servicing.

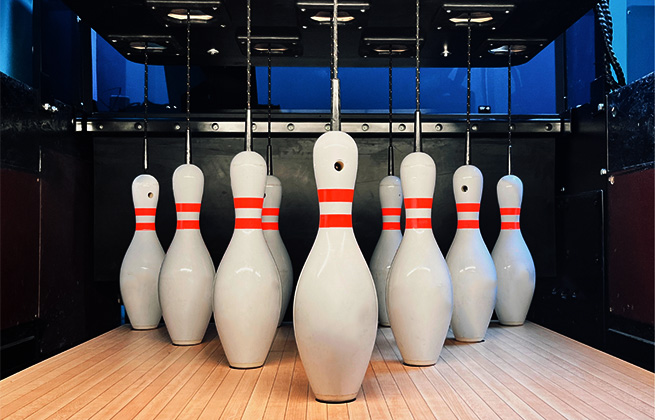

Individual Pin Cords
Each pin has its own cable running through a hole in the top, connecting it to the overhead mechanism. These cords are a wear item under commercial use and typically need replacement every two to three years under standard operating conditions.
Sensors and Detection Systems
Modern systems use sensors to determine which pins fell and which are still standing, feeding that information both to the reset mechanism and to the scoring system tracking the frame.
How a String Pinsetter Differs From Free-Fall Systems
The most important practical difference comes down to component count and mechanical complexity. A string pinsetter typically has roughly 75 moving parts, compared to several hundred in a free-fall equivalent that relies on below-lane sweep bars, pin elevators, and distributor mechanisms. Fewer components generally means fewer failure points and simpler diagnostics when something does need attention.
The trade-off shows up in pin action. Because pins on strings can't travel as freely after impact — they can't fly back off the rear cushion and scatter into other pins the way an untethered pin can — the secondary collision dynamics some experienced bowlers are used to are somewhat reduced. For casual and recreational play, this distinction rarely matters. For serious league bowlers, it's occasionally raised as a point of comparison.
Where Chfuntek's Engin Strike Fits This Technology
All-Metal, Fully Mechanical Construction — Minimizes components susceptible to failure, easier on-site troubleshooting.
50KG-Rated Pin Lines — Built to handle repeated daily cycles on a busy commercial floor.
0.8-Second Ball Return — Keeps lane throughput high during peak hours.
Engineered For — Years of daily 24/7 operation rather than occasional use.

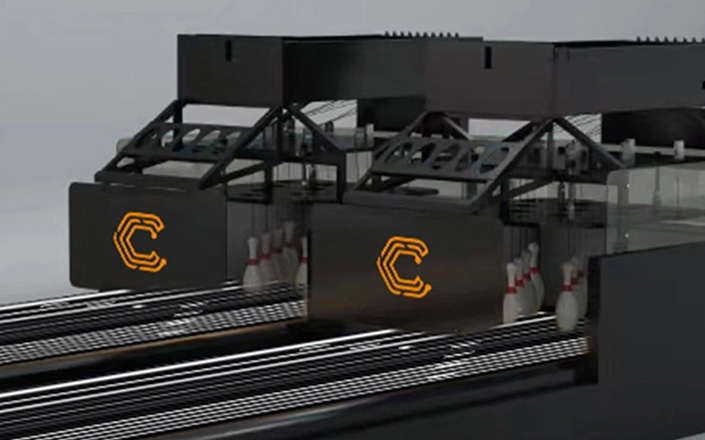

Chfuntek's Engin Strike string-pin bowling system applies this mechanism with a design specifically built for sustained commercial use. The system uses an all-metal, fully mechanical construction, which keeps the number of components susceptible to failure to a minimum and makes on-site troubleshooting far more manageable than systems built around dense electronics.
Pin lines are rated to withstand roughly 50KG of tension, giving the mechanism the durability to handle repeated daily cycles on a busy commercial floor, and the ball return system completes in about 0.8 seconds, keeping lane throughput high during peak hours. Because the entire system was engineered around commercial durability rather than adapted from a smaller-scale design, it's built to run reliably across years of daily 24/7 operation rather than occasional use.
For operators evaluating equipment options for a new build or a lane upgrade, understanding the actual mechanics covered in this guide is a useful foundation before getting into manufacturer-specific specifications and durability comparisons.
Evaluating String Pinsetter Options for a New Build or Upgrade?
Get specifications and a durability comparison for Chfuntek's Engin Strike system.
Talk to the Chfuntek TeamFrequently Asked Questions
How does a string pinsetter know which pins fell down?
Sensors integrated into the overhead mechanism detect which pins are still standing after a delivery, feeding that information to both the reset system and the scoring display.
How long does it take to reset between frames?
Most systems complete a full reset cycle in three to eight seconds, depending on the specific mechanism and manufacturer.
What part of a string pinsetter wears out fastest?
The individual pin cords are the most common wear item, typically needing replacement every two to three years under standard commercial usage.
Does this technology affect how pins scatter after a strike?
Yes, to some degree. Because pins remain tethered, they can't travel as freely as untethered pins after impact, which slightly reduces secondary collision effects on some borderline shots.
Is this technology mechanically simpler than a free-fall system?
Yes. A string pinsetter typically has around 75 moving parts compared to several hundred in a free-fall system, which generally means fewer potential failure points.
Final Thoughts
A string pinsetter works by keeping every pin tethered to an overhead mechanism that lifts, sorts, and repositions pins using cable rather than a complex below-lane pit system. That mechanical simplicity is what drives most of the technology's practical advantages — fewer components, generally lower maintenance requirements, and quieter operation — while introducing a routine wear item in the form of pin cords that free-fall systems don't have. Understanding this mechanism gives operators a much better foundation for evaluating whether the technology fits their specific venue and business model.
