This guide breaks down what a single bowling lane actually costs in 2026, what drives the price up or down, and how to use that number to build a realistic budget for your own project.
Why Per-Lane Cost Is the Right Way to Budget
Total project costs for bowling centers swing wildly — anywhere from a few hundred thousand dollars for a compact setup to several million for a large family entertainment center. That range is so wide it's almost useless on its own. Per-lane cost strips out the noise and lets you scale a realistic number to your specific plan, whether you're installing 4 lanes or 24.
It also forces a useful distinction most first-time buyers miss: equipment-only cost versus turnkey cost. Equipment-only figures cover just the pinsetter, lane surface, ball return, and scoring system. Turnkey figures fold in construction, electrical work, flooring, and fit-out. Comparing a turnkey quote against an equipment-only quote is the single most common reason budgets blow past expectations.
What a Single Lane Actually Costs in 2026
For a commercial installation, equipment-only pricing for a single lane — pinsetter, lane surface, ball return, and basic scoring — generally falls between $45,000 and $80,000. Once you fold in construction, electrical infrastructure, flooring, and fit-out, turnkey cost per lane climbs to roughly $80,000 to $150,000, depending on location and finish level.
Equipment Only (Per Lane)
$45K–$80K Pinsetter, lane, ball return, scoringTurnkey (Per Lane)
$80K–$150K Equipment + construction + fit-outScaled up, this is why a standard 8-to-12-lane commercial center typically lands somewhere between $650,000 and $1.5 million when fully built out, while smaller formats and compact lane systems can bring a modest 4-to-6-lane venue in well under $400,000.
A few specific cost components worth knowing:
| Component | Typical Cost Range |
|---|---|
| String pinsetter (hardware) | $8,000–$12,000 / unit |
| Free-fall pinsetter (hardware) | $15,000–$25,000+ / unit |
| Synthetic lane surface | $10,000–$25,000 / lane |
| LED scoring & displays | $4,000–$8,000 / lane |
| Construction & fit-out | $150–$250 / sq. ft. |
What Actually Moves the Per-Lane Number
If two quotes for the same lane count come back wildly different, it's almost never because one supplier is "cheaper" across the board — it's usually one or more of these factors.
Pinsetter technology. This is the single biggest lever in equipment cost. String pinsetters save roughly $10,000 per lane in upfront hardware cost compared to free-fall systems, and that gap compounds further once you factor in lower energy draw and dramatically reduced annual maintenance spending.
Lane format. Standard ten-pin lanes cost significantly more per lane than compact or mini bowling formats, which require less space and lighter-duty equipment — a meaningful consideration for venues working with limited square footage or a tighter budget.
New versus existing space. Retrofitting an existing commercial space is usually cheaper than ground-up construction, since the building shell and core utilities are already partly in place. That said, if the existing space needs major structural changes — reinforced subflooring, upgraded electrical capacity — those savings can shrink fast.
Location. Construction labor rates, real estate costs, and import duties on equipment vary enormously by market, which is why the same lane count can cost dramatically different amounts in different countries or even different cities within the same country.
Technology layer. Adding interactive scoring displays, motion-tracking projectors, or integrated POS systems for lane timing and food service all add cost per lane, but these features increasingly drive the revenue uplift that makes modern bowling centers profitable in the first place.
How Chfuntek Helps Control Per-Lane Cost

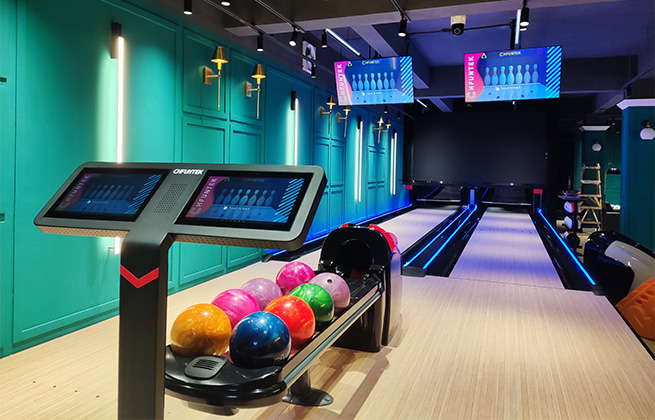

This is exactly where equipment choice has the biggest impact on your final per-lane number. Chfuntek's Engin Strike string-pin bowling system is built around an all-metal, fully mechanical construction designed for continuous 24/7 commercial operation — delivering the lower upfront hardware cost and reduced long-term maintenance that string technology is known for, without compromising on durability.
Beyond the pinsetter itself, Chfuntek's bowling lanes use certified board materials rated for 10+ years of use, and the ball return system's 0.8-second turnaround keeps lane throughput high during peak hours — directly supporting the revenue side of your per-lane investment, not just the cost side.
For anyone trying to nail down an accurate per-lane figure before committing to a project, getting a detailed quote that separates equipment cost from construction cost is the most useful first step.
Need an Accurate Per-Lane Quote?
Get a tailored equipment and cost breakdown based on your lane count, format, and location.
Talk to the Chfuntek TeamFrequently Asked Questions
How much does it cost to build a bowling alley per lane?
Equipment-only costs for a commercial lane typically range from $45,000 to $80,000, while turnkey costs including construction and fit-out generally run $80,000 to $150,000 per lane.
Is it cheaper to build with string pinsetters or free-fall pinsetters?
String pinsetters are considerably cheaper both upfront and over time. They typically cost $8,000–$12,000 per unit versus $15,000–$25,000+ for free-fall systems, and they also carry lower energy and maintenance costs.
Does the cost per lane go down with more lanes?
Yes, to a degree. Larger commercial projects benefit from economies of scale on shared infrastructure like scoring systems and mechanical rooms, which can slightly reduce the average cost per lane compared to a very small installation.
What's typically excluded from a per-lane equipment quote?
Most equipment-only quotes exclude land or rent, building construction, electrical and plumbing infrastructure, permits, and soft costs like architectural and legal fees — all of which are part of a true turnkey figure.
How much does it cost to build a bowling alley with 8 lanes?
Using standard per-lane figures, an 8-lane commercial center typically falls between roughly $650,000 and $1.2 million on a turnkey basis, depending on format choice, location, and finish level.
Final Thoughts
The honest answer to how much does it cost to build a bowling alley always comes back to per-lane math: pick your pinsetter technology, lane format, and finish level, multiply by your target lane count, and add construction. The single biggest cost-saving decision available to most new operators is choosing string pinsetter technology over free-fall — it lowers the number on day one and keeps lowering it every year after.
