For venues where bowling is one attraction among several rather than the primary draw, these operational advantages are not marginal — they determine whether bowling fits the business model at all. This article covers how bowling pins with strings work, why they suit small venue formats, what to evaluate when comparing string pinsetter systems, and how Chfuntek's commercial string bowling equipment is designed specifically for the entertainment venue context.

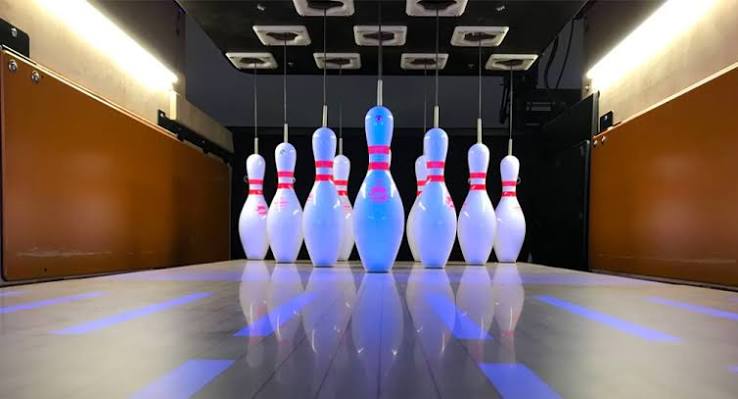

How Bowling Pins with Strings Work
The core mechanics are straightforward: each pin has a cord attached at the neck — the narrowest point above the belly — that runs up through an overhead drive unit above the lane. When a ball strikes the pins, the fallen pins drop but remain connected to the overhead mechanism by their individual strings. After the delivery is scored, the drive unit lifts all pins simultaneously back to their set positions, using the string to distinguish struck from standing pins and reset accordingly.
This overhead reset mechanism is what fundamentally differentiates string systems from free-fall designs. Traditional free-fall pinsetters rely on gravity, mechanical sweepers, pin-lifting mechanisms, and ball-sensing systems at floor level to clear and reset after each delivery — all of which require significant mechanical clearance behind and below the pin deck, complex maintenance procedures, and specialist knowledge to diagnose and repair. A string pinsetter's primary mechanism is entirely above the lane surface, reducing floor-level mechanical complexity and creating the operational simplicity that small entertainment venues need.
The Practical Differences That Matter for Small Venues
| Factor | Bowling Pins with Strings | Free-Fall Pinsetter |
|---|---|---|
| Moving parts | ~75 | Hundreds |
| Energy consumption | ~70% lower per lane | Standard |
| Annual maintenance per lane | ~$500 | ~$1,500 |
| 4-lane venue annual saving | ~$4,000/year | Baseline |
| Maintenance staff required | General venue staff | Specialist technician |
| Mechanical footprint (rear of lane) | Compact — overhead only | Significant floor-level clearance |
Why Bowling Pins with Strings Are Particularly Suited to Small Entertainment Venues
Small entertainment venues face constraints that traditional bowling equipment was not designed around. Floor space is shared with other attractions. Ceiling height may be lower than a dedicated bowling center's. Available maintenance budget and technical staff capability are more limited. And bowling needs to perform as one attraction among several rather than as the entire business model. String pinsetter technology addresses all of these constraints directly.
Space Efficiency
The mechanical footprint of a string pinsetter system behind the pin deck is substantially smaller than a free-fall system, because there are no floor-level mechanical sweepers, pin-handling trays, or return-mechanism components at that end of the lane. For a small venue where every square meter behind the lanes has cost and alternative use value, this reduction in backend mechanical footprint is directly commercially relevant. For mini bowling configurations — lanes of 9 to 13 meters fitting within a 12 to 14-meter room depth — string pinsetter technology scales naturally to the compact lane format without the clearance requirements that free-fall systems impose.
Operational Independence
A small entertainment venue running bowling pins with strings is running an attraction that venue staff can manage day to day. When a pin fails to reset or a string requires attention, the diagnosis and correction process is accessible to staff following the manufacturer's documented procedures. The same venue running a free-fall system faces the possibility of a lane going down and remaining out of service until a specialist technician can be arranged — in some markets, days rather than hours of downtime per incident. For a venue where two to four bowling lanes represent a significant portion of the entertainment offering, extended lane downtime has disproportionate impact on the guest experience and the revenue model.
Lower Total Cost of Ownership
The cumulative difference between string and free-fall total cost of ownership over a 5-year operating period is substantial for a small venue. At $500 versus $1,500 per lane per year, a 4-lane installation saves $4,000 annually on maintenance — $20,000 over 5 years — in addition to the energy savings from 70% lower power consumption. These numbers significantly affect whether bowling's contribution to the venue's P&L is positive across the investment horizon.
What to Evaluate in Bowling Pins with Strings Systems
Mechanical construction: All-metal construction — rather than plastic or composite components in the drive mechanism — holds up significantly better under sustained daily commercial use. Confirm the material specification of primary mechanical components, not just the pin and string themselves.
String and attachment durability: The string attachment at the pin neck and the string material are the highest-wear components in any string pinsetter system. Ask about replacement frequency under commercial daily use and whether replacement is a procedure venue staff can perform or requires manufacturer service.
Ball return integration: Ball return speed and reliability are as important to the guest experience as the pinsetter mechanism. A string pinsetter that resets quickly but returns the ball slowly creates wait-time that undermines the benefit of the fast pin reset. Confirm ball return cycle time alongside pinsetter reset speed.
Lane surface compatibility: USBC-certified phenolic lane surfaces are the standard recommendation — confirmed compatible with string pinsetter use and rated for 10 or more years of commercial daily use.
Installation and after-sales support: For a small venue, factory-trained installation, included operator training, defined spare parts availability, and responsive technical support are not peripheral requirements — they're part of the core commercial proposition.
How Chfuntek's String Bowling System Serves Small Entertainment Venues
Chfuntek's Engin Strike String-Pin Bowling System was designed for the commercial entertainment venue context described in this article — not adapted from traditional bowling center equipment, but built around the operational and space constraints that small FECs, sports bars, boutique entertainment venues, hotels, and restaurant entertainment areas actually face.
All-metal, fully mechanical string pinsetter — approximately 75 moving parts for 24/7 commercial operation; significantly lower failure points than free-fall alternatives.
0.8-second ball return cycle — maintains guest throughput during peak hours without delay between deliveries.
~70% lower energy consumption per lane versus traditional free-fall systems; meaningful ongoing cost reduction for venues running 8 to 10 operating hours daily.
~$500 per lane annual maintenance — roughly one-third of comparable free-fall system costs; manageable by general venue staff without specialist technician access.
USBC-certified lane surfaces — rated for 10+ years of commercial use; consistent ball performance across the full installation lifespan.
Pre-purchase layout planning — Chfuntek confirms the string bowling configuration fits the actual venue dimensions before any capital commitment is required.
Factory-trained installation + operator training included as standard; international freight via LCL, FCL, and courier.
Evaluating Bowling Pins with Strings for Your Venue?
Contact the Chfuntek team for a layout consultation and complete project quote — confirmed against your actual venue dimensions and commercial requirements before you commit.
Talk to the Chfuntek TeamFrequently Asked Questions
What are bowling pins with strings?
Bowling pins with strings are pins equipped with a cord attached at the neck, connected to an overhead drive mechanism that lifts and resets pins after each delivery. This string pinsetter format replaces the floor-level mechanical systems of traditional free-fall pinsetters with a simpler overhead reset mechanism.
Are bowling pins with strings suitable for commercial entertainment venues?
Yes. String pinsetter systems are increasingly the standard choice for new commercial entertainment venue bowling installations — FECs, sports bars, boutique venues, hotels, and shopping mall entertainment areas — due to lower maintenance costs, lower energy consumption, simpler staff management, and a smaller mechanical footprint than free-fall alternatives.
What is the maintenance cost difference between string and free-fall bowling systems?
Annual per-lane maintenance for string pinsetter systems typically runs approximately $500, compared to approximately $1,500 for free-fall equivalents. For a 4-lane small venue installation, this is approximately $4,000 in annual savings — $20,000 over a 5-year operating period.
Do bowling pins with strings require specialist maintenance staff?
No. Well-designed string pinsetter systems are built for general venue staff to manage following the manufacturer's documented maintenance procedures. This contrasts with free-fall systems, which typically require specialist bowling technician access for all but the most basic servicing.
What is the lifespan of commercial lane surfaces with string pinsetter systems?
USBC-certified phenolic lane surfaces compatible with string pinsetter systems are rated for 10 or more years of commercial daily use under normal operating conditions.
Final Thoughts
Bowling pins with strings represent the most operationally appropriate pinsetter format for small entertainment venues in 2026 — not as a compromise on the traditional bowling experience, but as a purpose-designed commercial format that fits the space, staff capability, maintenance budget, and multi-attraction business model of the venue types adopting bowling fastest right now. The advantages are specific and quantifiable: approximately 75 moving parts versus hundreds, $500 versus $1,500 per lane annual maintenance, 70% lower energy consumption, and staff-manageable servicing without specialist technician dependency.
For small venues evaluating bowling as a new attraction, the format decision between string and free-fall is the most consequential early choice in the project — and the case for string in the small entertainment venue context is the stronger one.
Planning a bowling installation for a small entertainment venue and want to evaluate Chfuntek's string pinsetter system? Contact the Chfuntek team for a layout consultation and complete project quote.
